Modular Data Center

RakworX R1-R10 Intelligent Direct Natural Free Air Cooling With Evaporate MDC Low PUE

Next Generation Modular Data Center

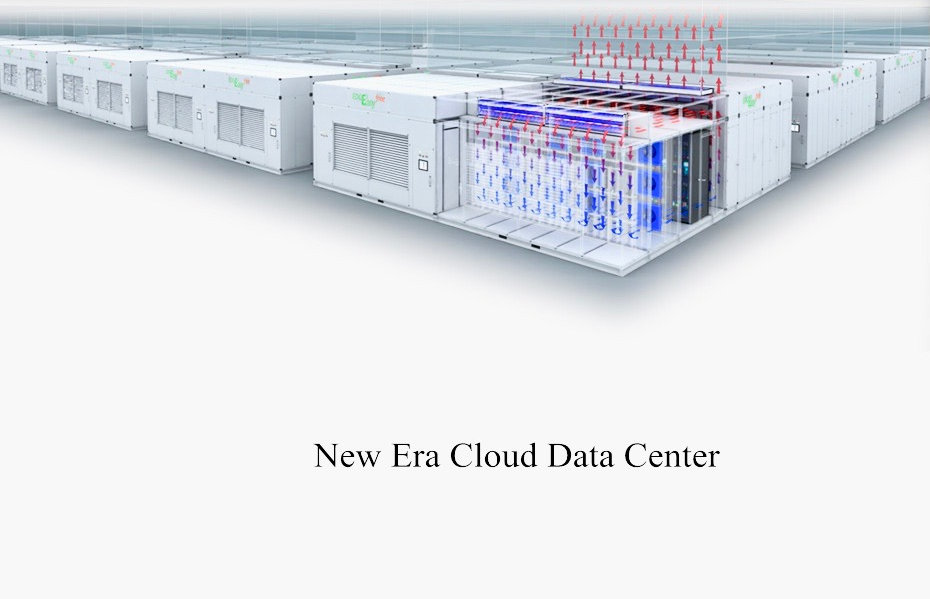

  • Direct Natural Free Air + Evaporate

  • PUE Low to 1.1

  • Fully Prefabricated

  • Single Rack Power Up to 350kW

  • Intelligent PLC Control

Specifications(single unit)

Technology Comparison

INPUT

Nominal Input Voltage: 380-414V AC, 3PH, 50 Hz

Maximum Input Current: 800A

POWER DISTRIBUTION

IT Load: 5-350 Kw (10)

Power Distribution: Busway

PDU: Rack mount PDU, AP1000 series, 2pcs/rack Input: 415/240 V AC, 25A, 3PH

Output: (36) C13. (6) C19

COOLING

Type: Natural free air + evaporative + supplement DX cooling

Capacity: 20-150kW

Relative Internal Operation Humidity: 10%-95% 15.6°C ~ 26.7°C/60.08°F ~ 80.06°F

RACK

Size: (10) 52U Racks 550mm ( W ) x 1000mm ( D )
